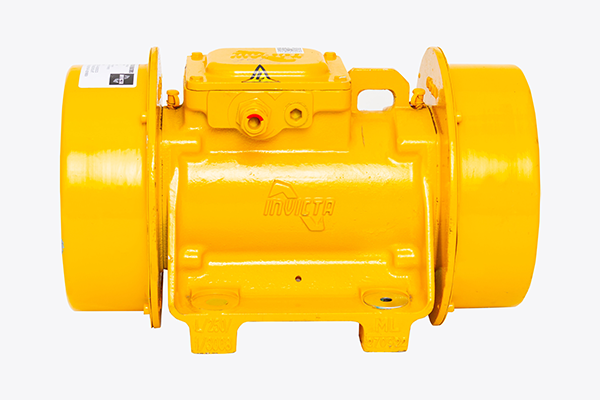

Invicta Vibrator Motor Specifications
-
Insulation Class: F
-
Protection Rating: IP66
-
Voltage Groups:
- Group 28: Δ 380-415V or Y 660-690V
- Group 03: Y 525-550V
-
Available Pole Configurations: 2, 4, 6, 8 poles
-
Centrifugal Force Range: 50 kgf – 31,500 kgf
-
Output Power Range: 70W – 12,500W
-
Duty Classification: S1 Duty, Zone 2; Zone 21/22
Mounting Options:
- B3 (Foot/Base Mounting): Vertical & Horizontal
- B5 (Flange Mounting): Vertical
- Pneumatic B3 (Foot/Base Mounting): Vertical & Horizontal
- Hydraulic B3 (Foot/Base Mounting): Vertical & Horizontal
